Bulit-out IC Led Strip

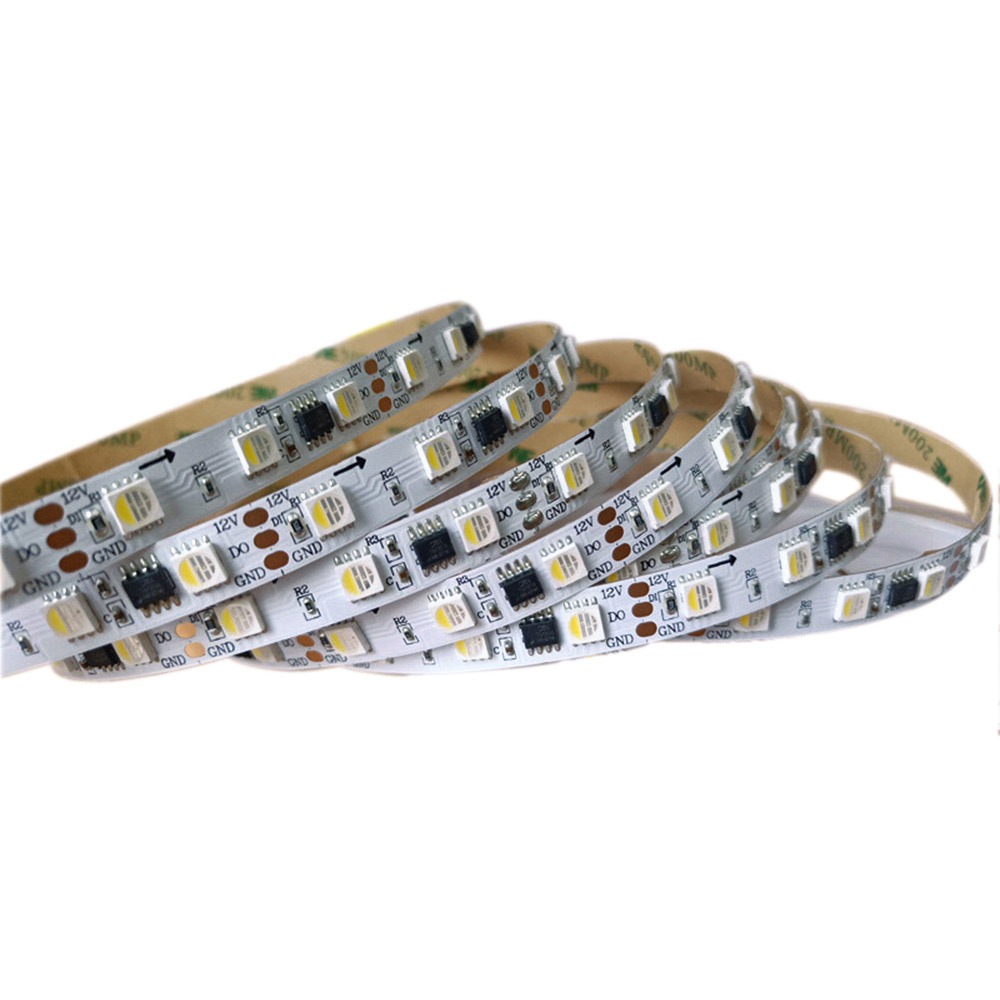

TM1814 IC RGBW programmable strip led
- Parameter:
• Model:ST-TM1814-12V
• IC Model: TM1814
• LED/Qty/m: 60leds/m
• Color: digital RGBW
• Standard Operating Voltage: DC12V
• Waterproof Rate:IP20/IP65/IP67/IP68
• FPCB color: Black/White

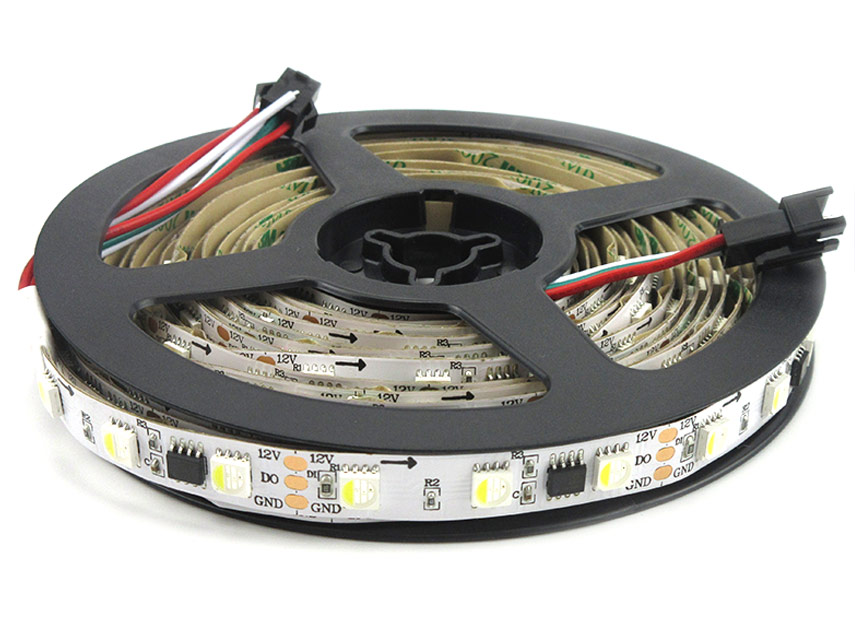

• Packing: 5m/roll or customized length , static bag packaging
• Warranty: 5 years, 3 years, 2 years
-
Products detail:
• TM1814 IC RGBW programmable strip led, R/G/B/W 4 color in 1LED. 60leds/14.4w/m
• RGBW = RGB +White (6000-65000k),RGBWW= RGB + Warm White (2800-3200k),RGBNW= RGB + Natural White (4000-4500k),RGBW = RGB + Cold White ( above 7000k)
• 256 brightness display and 32-bit color display. Three pixel can have its own color and brightness. You can control them and set them to any color or animation you want.

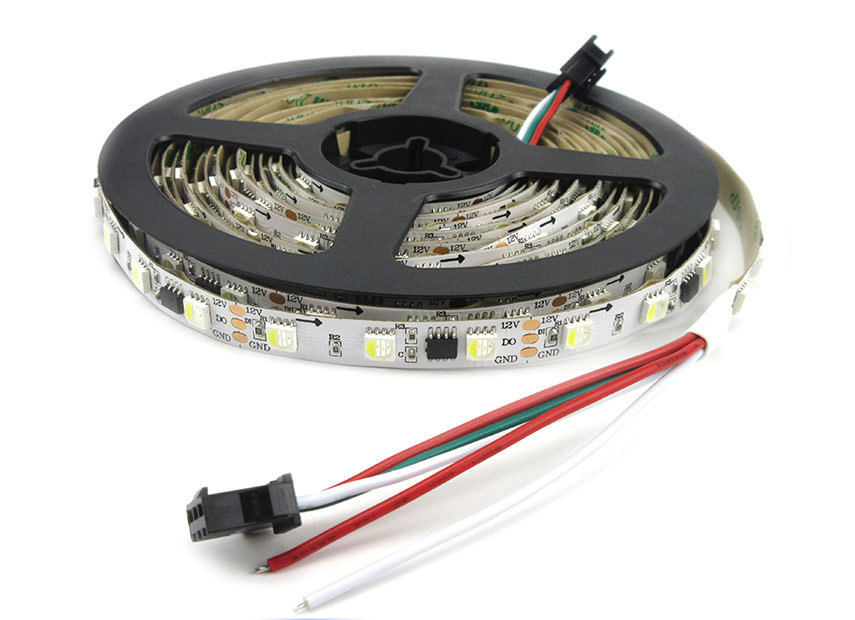

•Comes with 3pin JST-SM connectors and separated power/ground wires on both ends. Three LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.
• Works great with ready-to-go library & example code for the Arduino UNO/Duemilanove/Diecimila, Flora/Micro/Leonardo, Trinket/Gemma, Arduino Due & Arduino Mega/ADK, FastLED library and Raspberry Pi.
