Bulit-in IC Led Strip

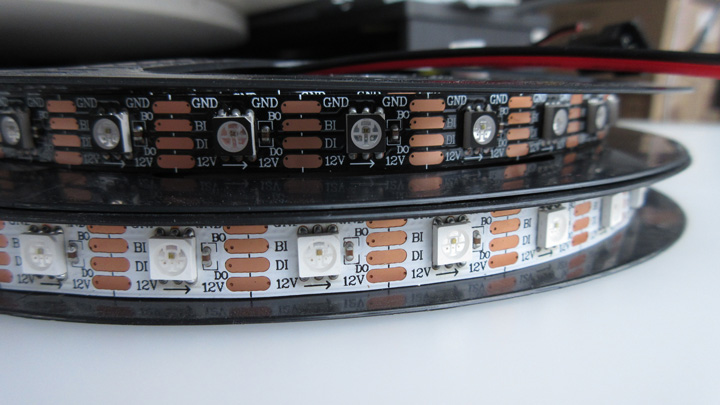

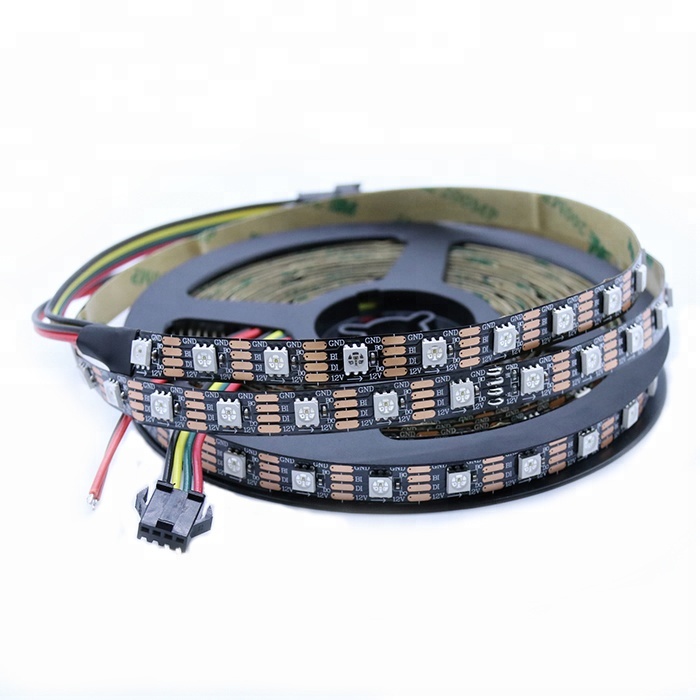

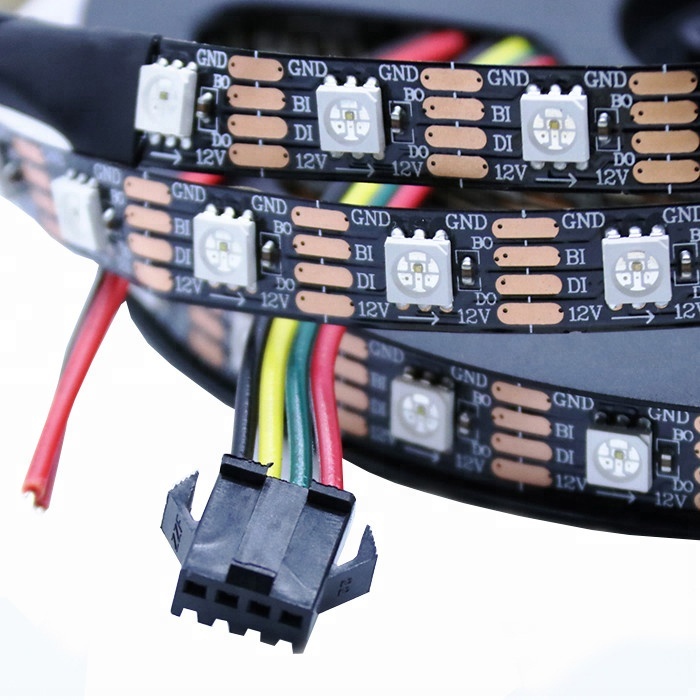

CS8812B addressable led strip

Parameter:
• Model:ST-CS8812-12V
• IC Model: CS8812 (1IC&1LED)
• LED/Qty/m: 30leds/m; 60leds/m;
• Color: digital RGB
• Standard Operating Voltage: DC 12V
• Waterproof Rate:IP20/IP65/IP67/IP68
• FPCB color: Black/White
• Packi
INQUIRY EMAIL

Products detail:
• CS8812 led chip can replace WS2815 led chip,1IC&1LED
• CS8812 led chip have two version:version A is have itself original programme but version B not.
It is meaning,Version can run the programme when it connect power no need controller,but it only have 33 kinds simply effects.Version B need to connect the controller.
• 2.CS8812 is DC12V led chip,3 channel constant current led driver
