Bulit-in IC Led Strip

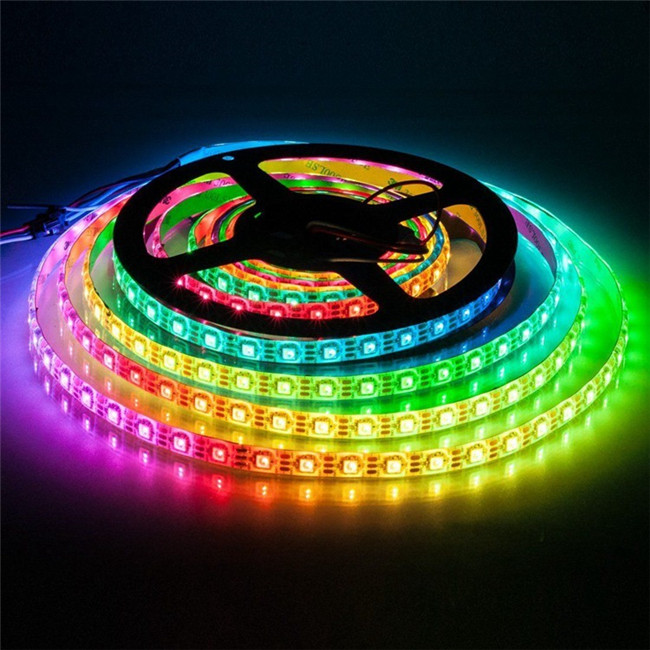

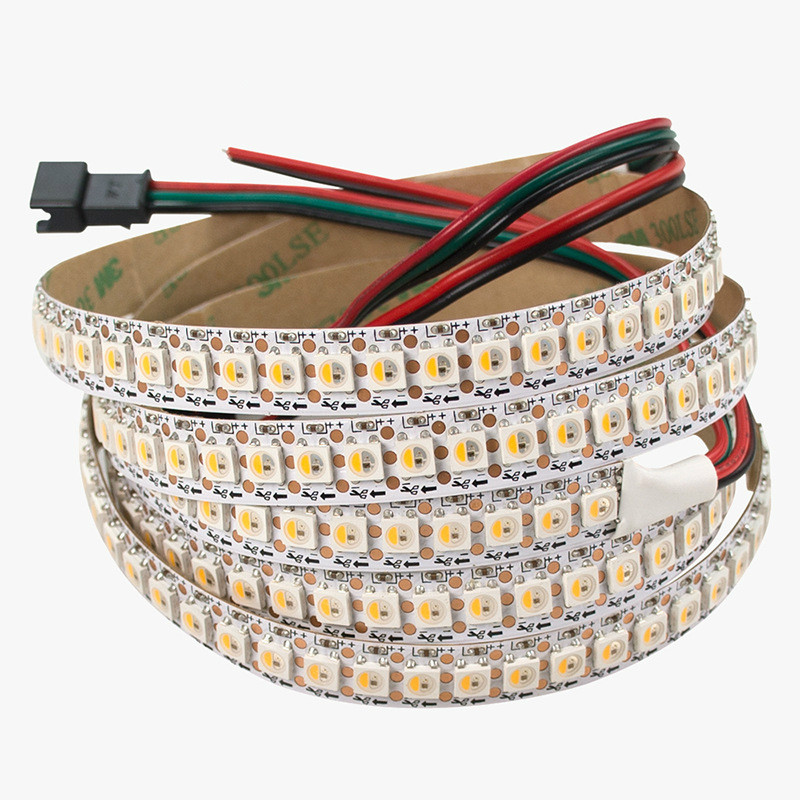

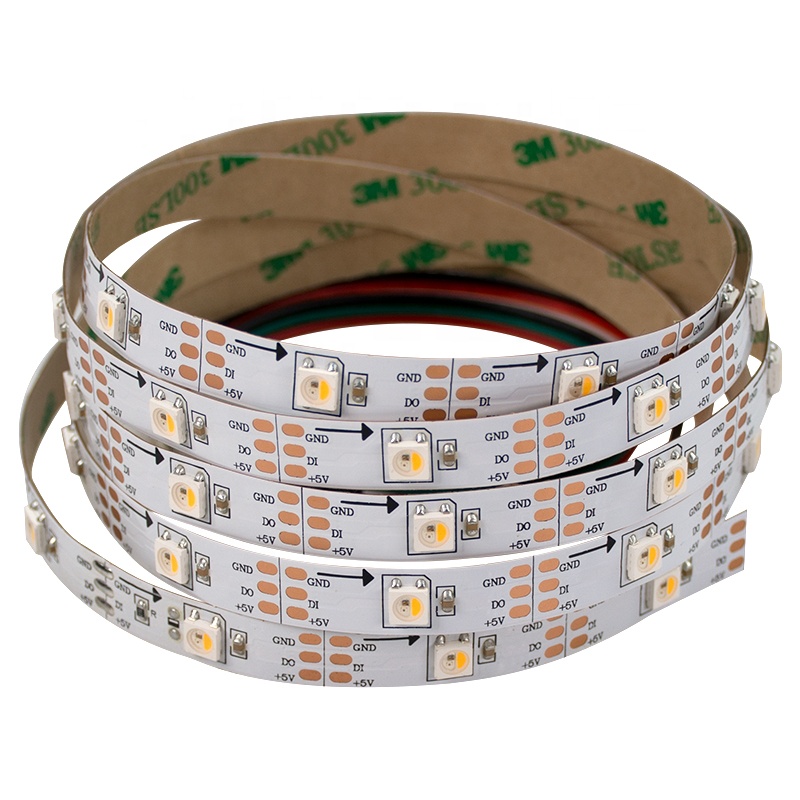

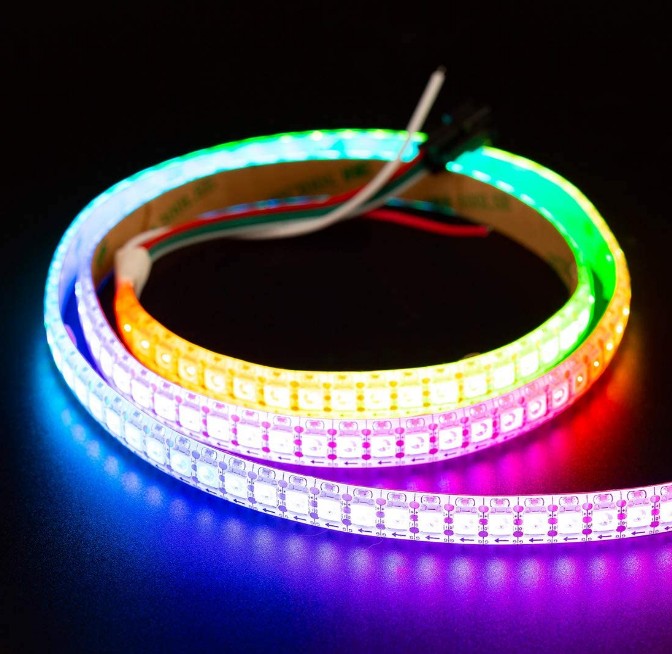

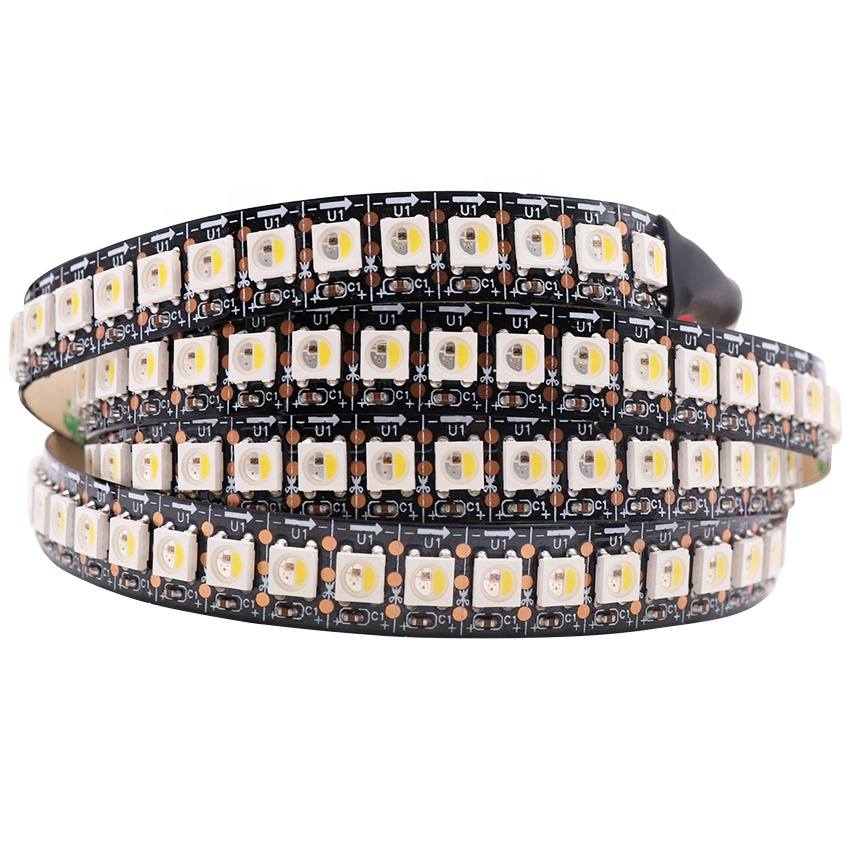

SK6812/SK9822 RGBW Addressable LED Strip

Parameter:
• Model:ST-SK6812-5V
• IC Model: SK6812 (1 IC drives 1 led chip)

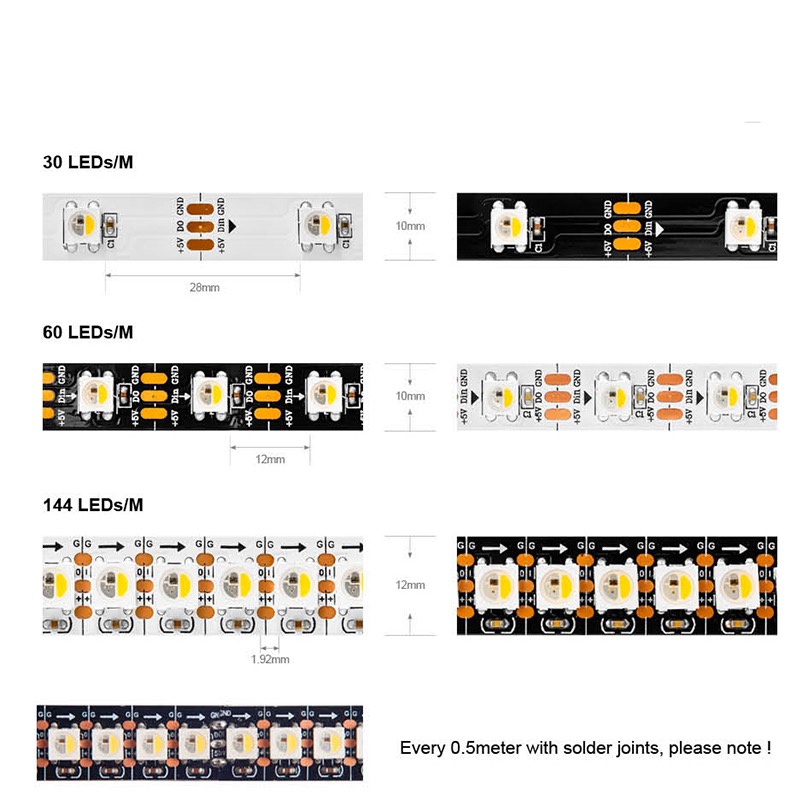

• LED/Qty/m: 30leds/m; 60leds/m; 72leds/m; 144leds/m
• Color: digital RGBW
• Standard Operating Voltage: DC 5V
• Bits/color: 32-bit color control (8-bit PW
INQUIRY EMAIL

Products detail:

• 256 brightness display and 32-bit color display. Each pixel can have its own color and brightness. You can control them individually and set them to any color or animation you want.

• Works great with ready-to-go library & example code for the Arduino UNO/Duemilanove/Diecimila, Flora/Micro/Leonardo, Trinket/Gemma, Arduino Due & Arduino Mega/ADK, FastLED library and Raspberry Pi

Comes with 3pin JST-SM connectors and separated power/ground wires on both ends. Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.

• This strip can be used as flexible dispaly to show videos,

• White color can be customized warm white 2800-3200K, natural white 4000-4500K, cool white 6000-6500K

• Flexible FPCB, white or black for choose, each pixel is cuttable.

IP20/IP65/IP67 rate thickness

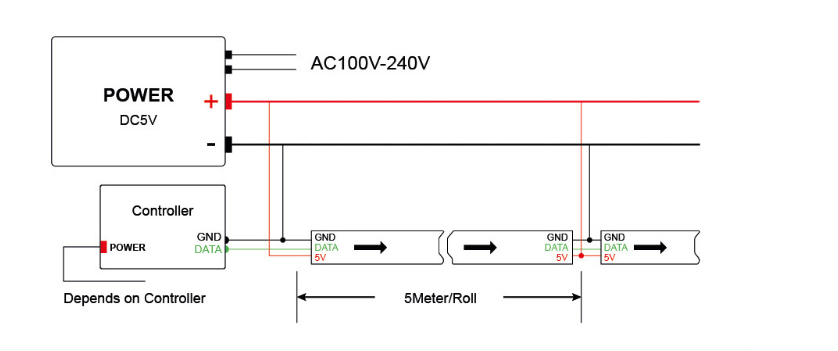

Connect way
