Bulit-out IC Led Strip
WS2811 digital led strip
- Parameter:
• Model:ST-WS2811-5V/12V
• IC Model: WS2811/ SM16703 / UCS1903
• LED/Qty/m: 30leds/m; 60leds/m; 90leds/m
• Color: digital RGB
• Standard Operating Voltage: DC5V / DC12V
• Waterproof Rate:IP20/IP65/IP67/IP68
• FPCB col
-
products detail:
•DC12V and DC5V are available. Three type IC can choose WS2811/ SM16703 / UCS1903
•30leds/m; 60leds/m; 90leds/m or customized

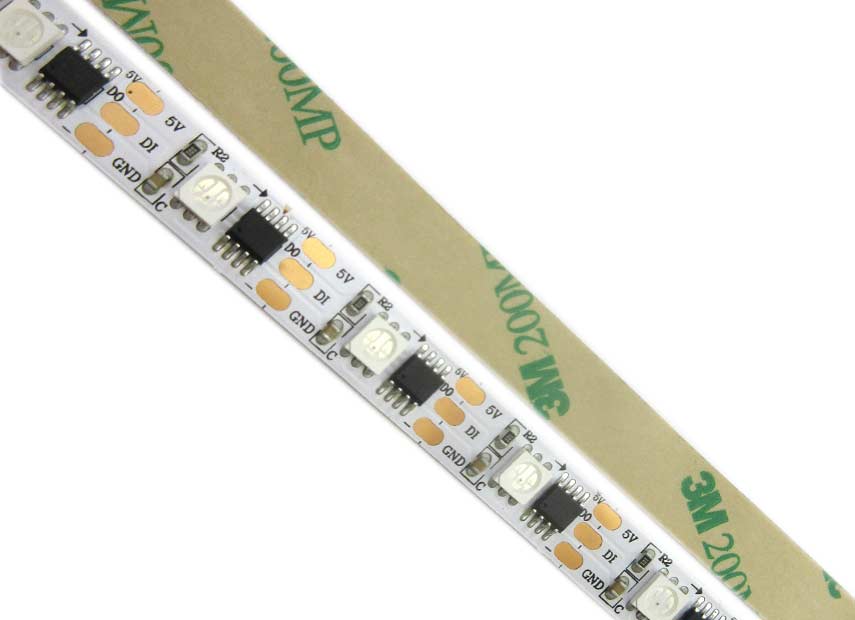

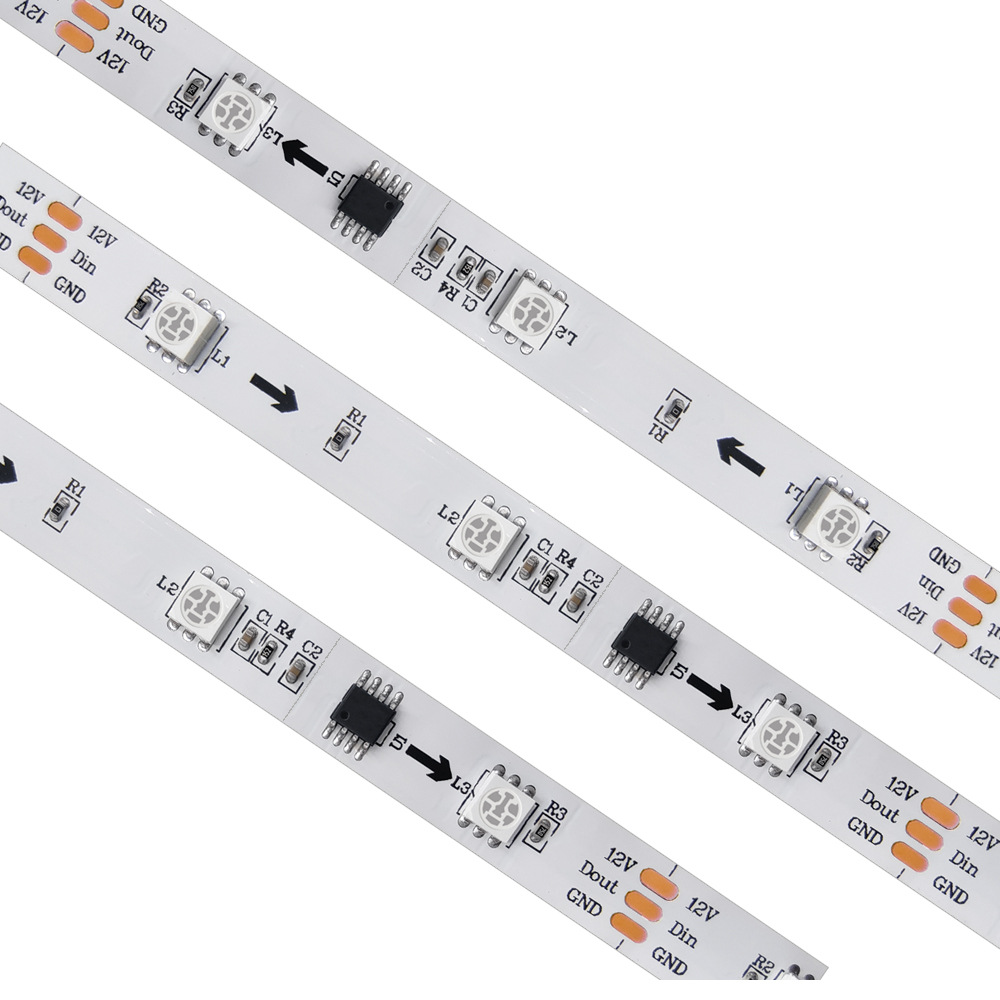

•WS2811 LED Strip use the FPCB flexible printed circuit board to be assembly circuit boards
•SMD LED lights and components to be assembled,so that the thickness of the product only
just like,Occupy a small space,and can be arbitrarily cut,FPC is soft material,can random winding,
•WS2811 is built-out single signal IC:one data cable(DAT),two power lines,256 gray scale,high brightness, fast data transfer,fast screen refresh,etc.,with the controller,you can achieve monochrome
•freely movable in three-dimensional space without breaking,suitable for irregular place
and narrow space of places to install,but also as any possible bending,suitable for advertising,
decorative lighting,any combination of the kinds of patterns
